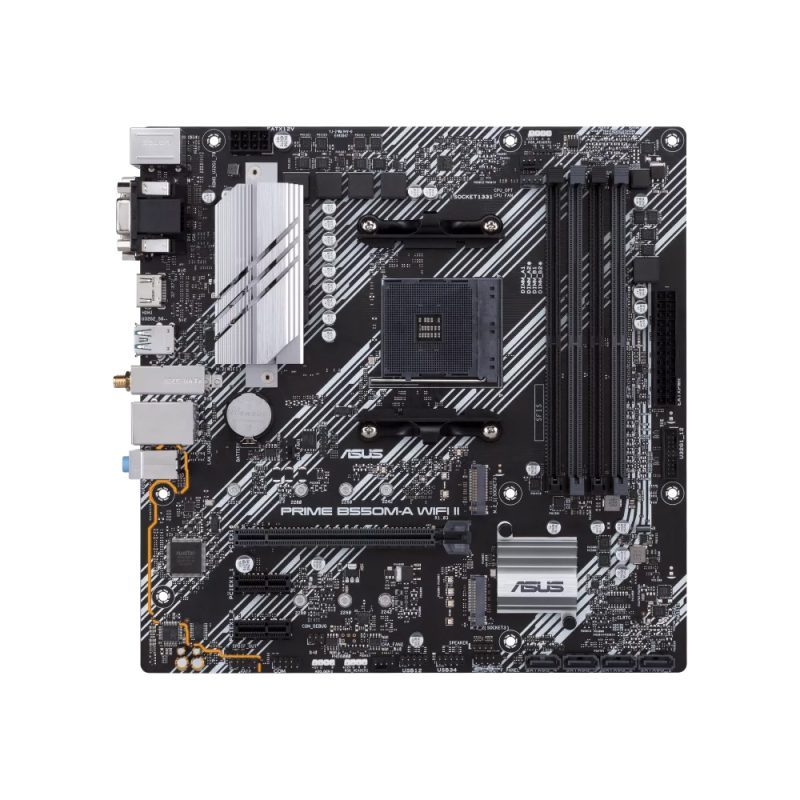

Mainboard ASUS PRIME B550M-A WIFI II (Bluetooth)

Sản phẩm

Bo mạch chủ

Tên Hãng

Asus

Model

B550M-A

CPU hỗ trợ

AMD

Chipset

B550

RAM hỗ trợ

4 x DDR4 DIMM Slots ( 128GB )

Khe cắm mở rộng

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors

1 x PCIe 4.0 x16 slot (supports x16 mode)

AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors

1 x PCIe 3.0 x16 slot (supports x16 mode)

AMD B550 Chipset

2 x PCIe 3.0 x1 slots

Ổ cứng hỗ trợ

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

AMD Ryzen™ 4000 G-Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)

AMD B550 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

Support RAID 0, 1, 10

Cổng kết nối (Internal)

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

2 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

1 x Addressable Gen 2 header

2 x AURA RGB headers

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x Speaker header

1 x SPI TPM header (14-1pin)

1 x 10-1 pin System Panel header

Cổng kết nối (Back Panel)

2 x USB 3.2 Gen 2 ports (2 x Type-A)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

1 x D-Sub port

1 x DVI-D port

1 x HDMI® port

1 x Wi-Fi Module

1 x Realtek 1Gb Ethernet port

3 x Audio jacks

1 x PS/2 Keyboard/Mouse combo port

LAN / Wireless

Wi-Fi 6

Wi-Fi 6

2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

Supports 2.4/5GHz frequency band

Bluetooth v5.2

Kích cỡ

-
